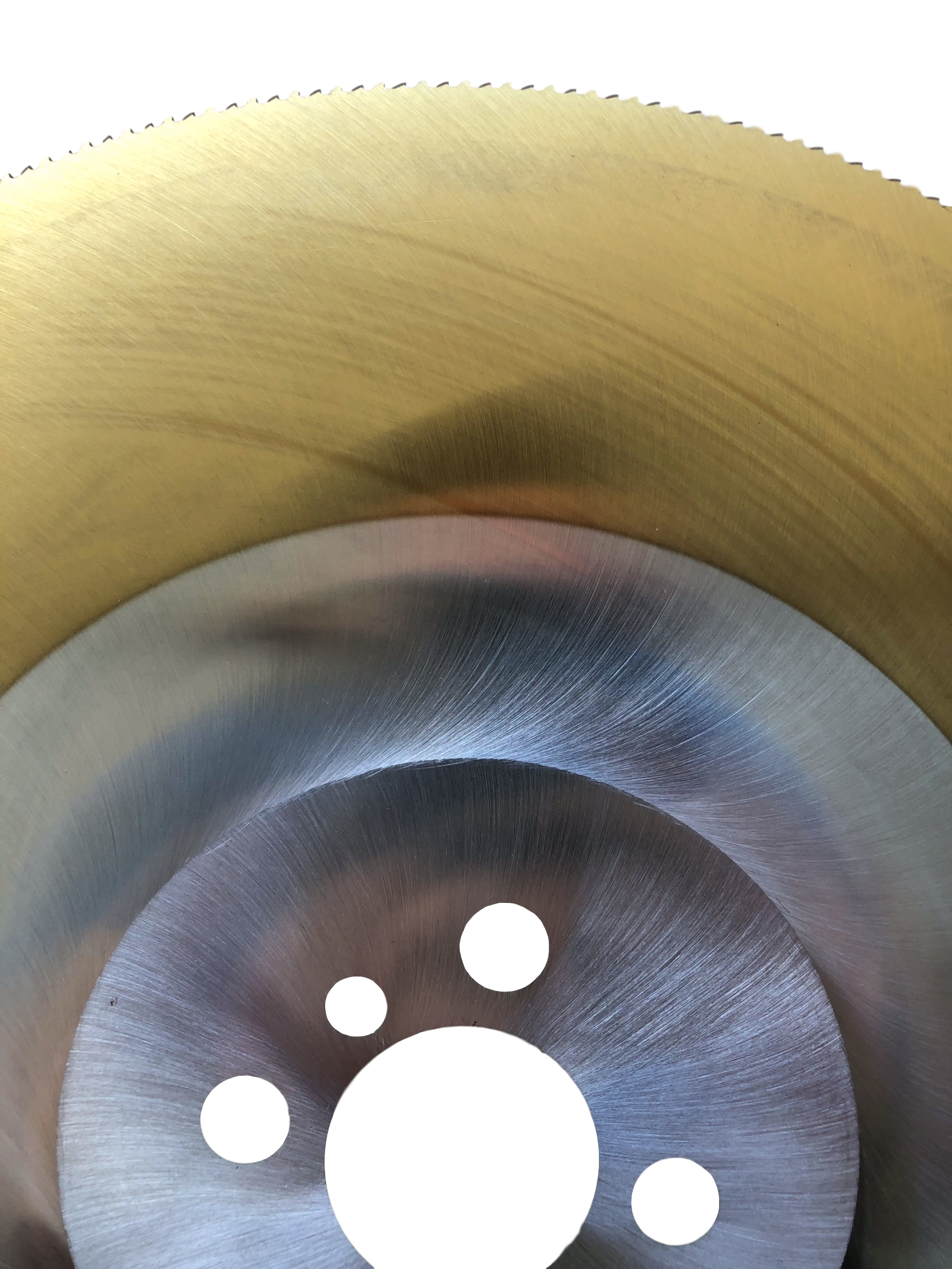

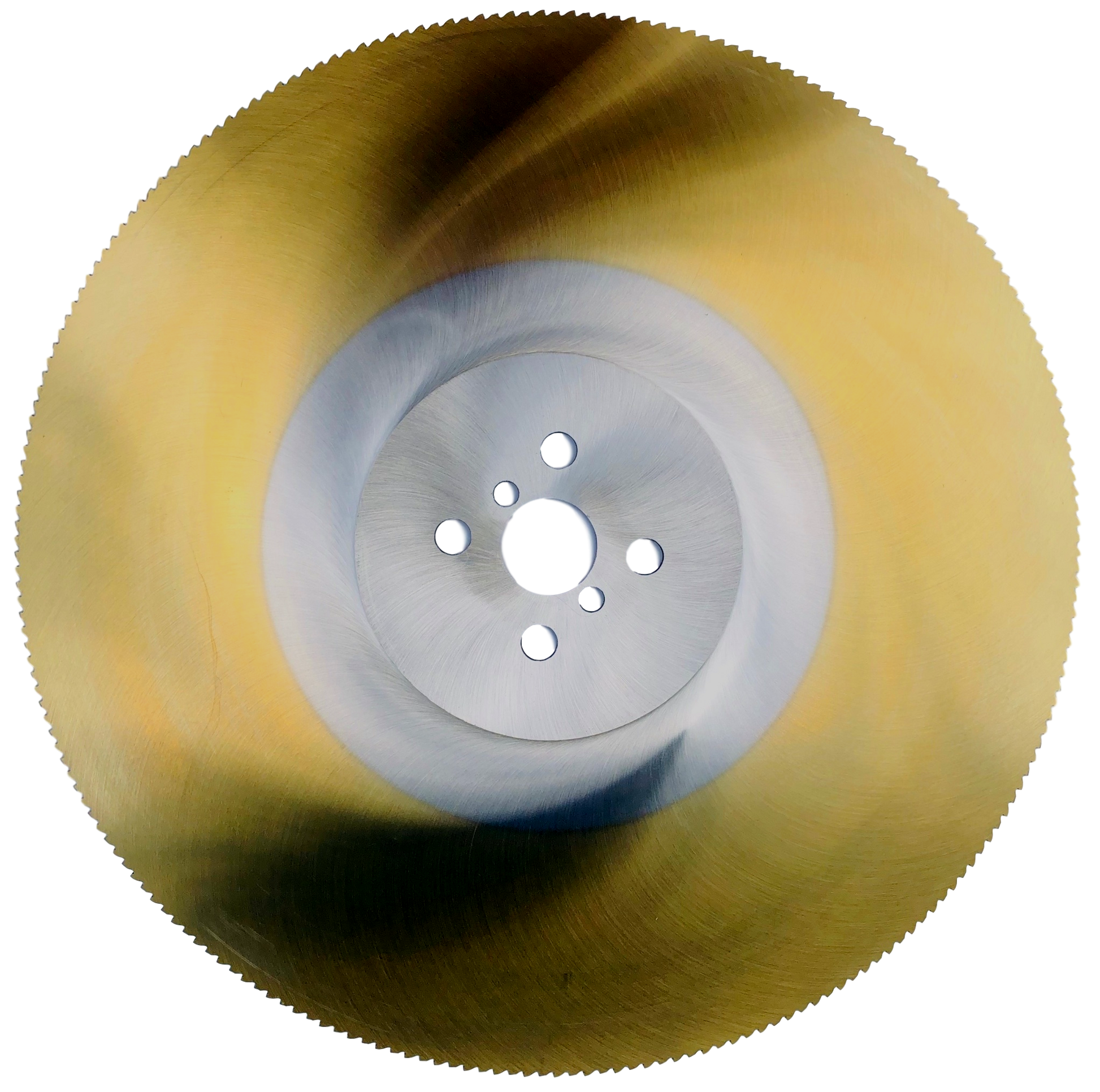

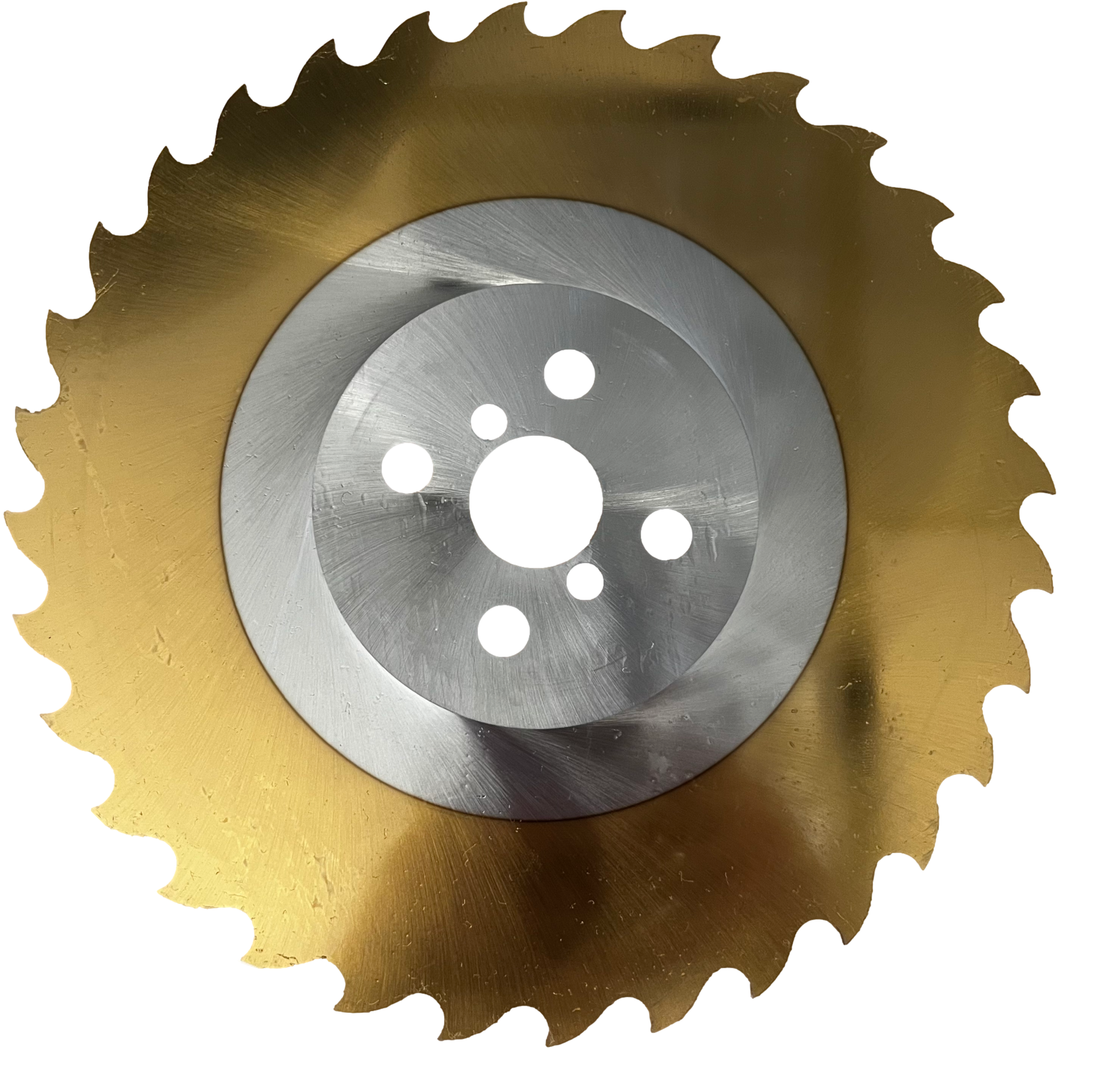

275 x 2.5 x 40 HSS M2 DMo5 Cold Saw Blade
275 x 2.5 x 40 HSS M2 DMo5 Cold Saw Blade
275 x 2.5 x 40 HSS M2 DMo5 Cold Saw Blade
TITANIUM NITRIDE (TIN) COATED

275 x 2.5 x 40 HSS M2 DMo5 Cold Saw Blade

Regular price $94.97 Sale price $125.00
This item ships FREE!

FREE SHIPPING

275MM (10.827") DIAMETER
2.5MM (0.098") THICKNESS

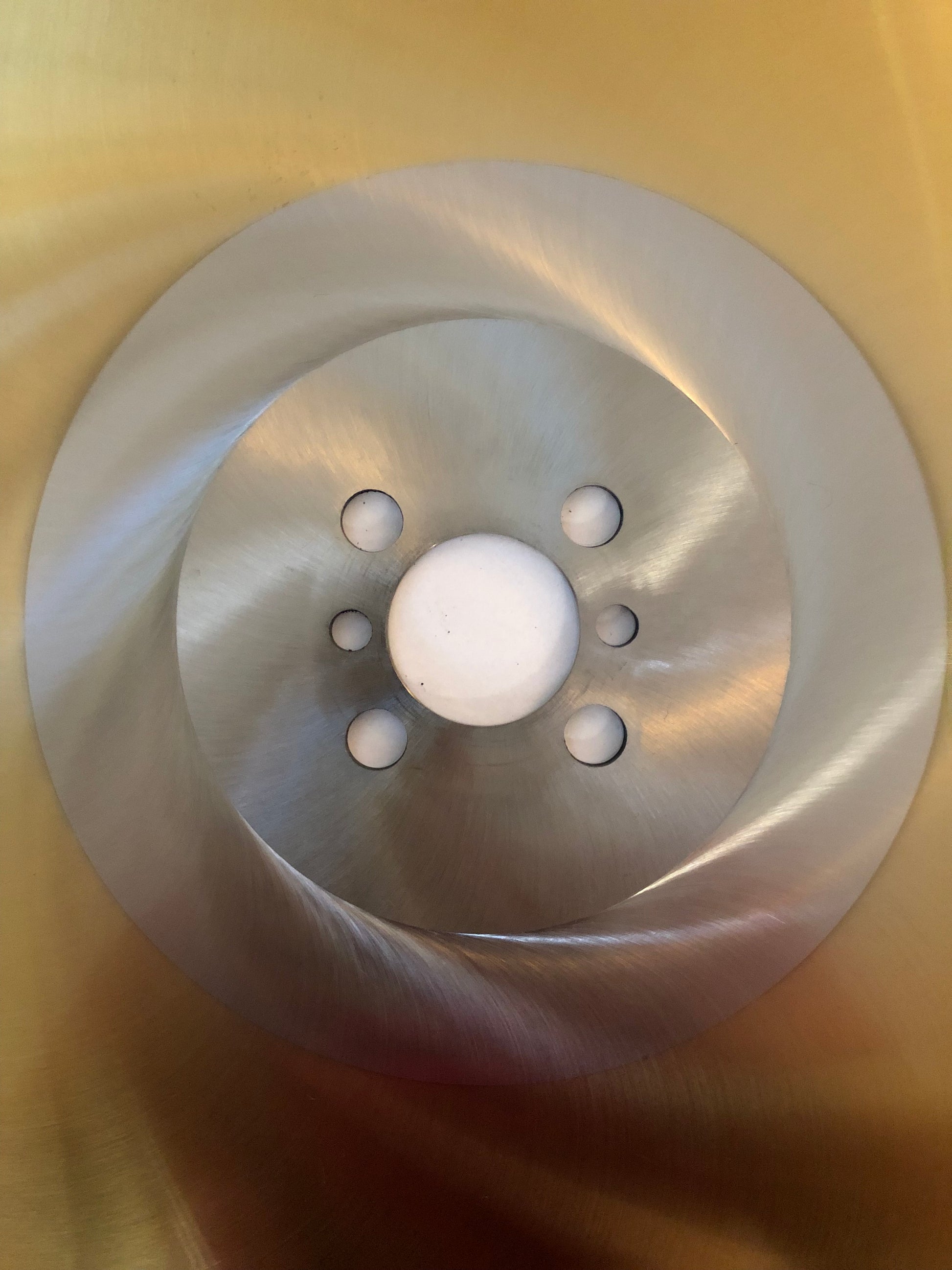

40MM (1.575") ARBOR HOLE

BOLT HOLES: 4/12/64 + 2/9/55
(4/12/64 = 4 bolt holes which are 12mm in diameter on a 64mm bolt circle)
The bolt circle is the distance from the center of one pinhole to the center of the other pinhole directly across the arbor hole

If you are unsure of how many teeth you need for your application, try using our tooth count calculator by clicking here (new window or tab will open).

Please verify you order the correct arbor size

HSS M2 DMo5 TITANIUM NITRIDE (TIN) COATED

Titanium nitride is an extremely hard ceramic material, often used as a coating on titanium alloys, steel, carbide, and aluminum components to improve the substrate's surface properties. The coating's main advantages include a longer life between sharpenings and added lubricity on the sides of the saw plate to reduce the stress associated with cutting hard materials.

Our cold saw blanks are made from M2 - DMo5 tool steel. During the manufacturing process they are heat treated and hardened to about 65 HRc, triple tempered, and press quenched to preserve their flatness. Every blade undergoes a strict quality control check. During this process, we test for runout on flatness, surface roughness, blade thickness, cracks, and scars. Flatness is checked at every point on the surface and roughness is checked via infrared deflection.

All blades are ground in the US on advanced computer numerically controlled (CNC) grinding equipment by industry experts with over 40 years of industry experience.
