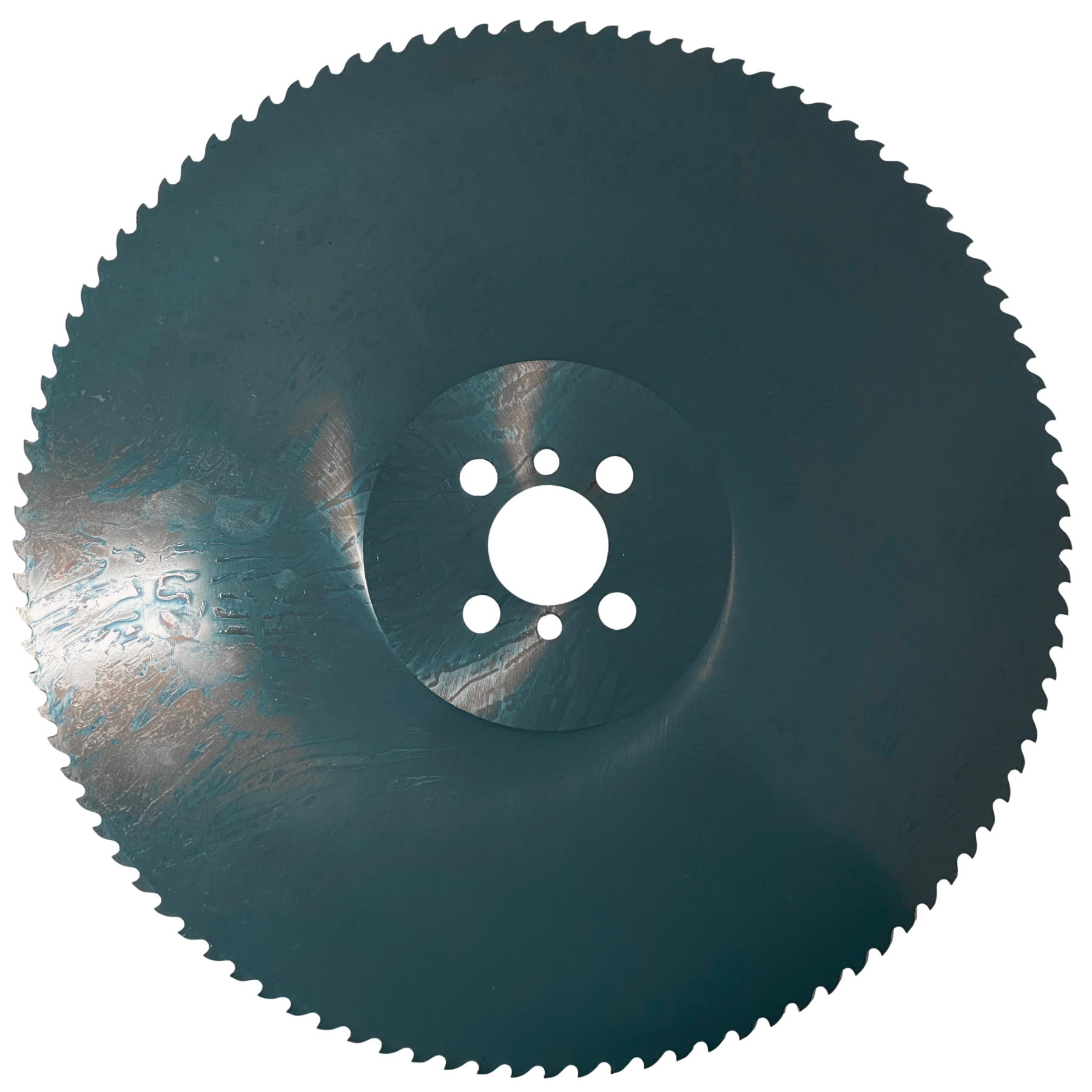

• 450 x 3.0 x 40 HSS M2 DMo5 Cold Saw Blade
  • 250 x 2.0 x 40 HSS M2 DMo5 Cold Saw Blade bolt hole pattern: 4/12/64 and 2/9/55
  • 250 x 2.0 x 32 HSS M2 DMo5 TiN Coated Cold Saw Blade CNC ground tooth edge close-up
  • 250 x 2.0 x 40 HSS M2 DMo5 Cold Saw Blade ground tooth profile close-up
1 4

450MM (17.717") DIAMETER
3.0MM (0.118") THICKNESS
40MM (1.575") ARBOR HOLE

This HSS cold saw blade is designed to fit the Haberle H450 machine and all other 450 model machines with a 40mm arbor. You don’t have to worry about the bolt holes because if your machine has a 40mm arbor, this blade is guaranteed to fit!

BOLT HOLES: 4/12/64 + 2/9/55
(4/12/64 = 4 bolt holes which are 12mm in diameter on a 64mm bolt circle)
The bolt circle is the distance from the center of one pinhole to the center of the other pinhole directly across the arbor hole.

If you are unsure of how many teeth you need for your application, try using our tooth count calculator by clicking here (new window or tab will open).

Please verify you order the correct arbor size.

HSS M2 DMo5 VAPOR STEAM TREATED BLACK OXIDE

All cold saw blades used to cut steel products should have a coating. The most common coating is black oxide, sometimes referred to as vapor steam coated. The coating is most important to help prevent galling. Galling is caused by friction between sliding surfaces, most commonly found in metal on metal applications when there is inadequate lubrication between the surfaces. The combination of the coated blade and your flood coolant will prevent this issue.

All blades are ground in the US on advanced computer numerically controlled (CNC) grinding equipment by industry experts with over 40 years of industry experience.

Cold Saw Shop

450 x 3.0 x 40 HSS M2 DMo5 Cold Saw Blade

450 x 3.0 x 40 HSS M2 DMo5 Cold Saw Blade

$374.97 USD
$346.00 USD $374.97 USD
Sale Sold out
🟢 In Stock — Ships Today!
Order before 1 PM CT
Shipping calculated at checkout.

If you are unsure of how many teeth you need for your application, try using our tooth count calculator by clicking here (a new window or tab will open).

Ships today or next business day at the latest We do our best to ship every order the same day. Same-day shipping depends on when you order, how many you order, and a few other factors. Most orders leave the same day.
Teeth ground in the USA CNC ground to spec, then checked before it ships
Secure checkout Encrypted payment
Not sure it fits your saw? Call with your saw model and we will confirm fitment before you order. (855) 729-7732
Factory sharpening Send your dull blades back. Sharpened in Anna, TX with 24 hour turnaround. How it works

This 450mm x 3.0mm M2 DMo5 cold saw blade has a 40mm arbor. Teeth are CNC ground in the USA on equipment built for HSS saw blades.
View full details
CSS 2000 Semi-Synthetic Sawing Fluid for Cold Saws

Running flood coolant?

Add CSS 2000 Semi-Synthetic Sawing Fluid

Keep tooth temperature down and chips moving. The right coolant is one of the easiest ways to get more cuts out of every HSS blade.

  • Extends blade life
  • No chlorine, sulfur or petroleum oil
  • Non-foaming
  • Long sump life
$165.00 per 5 gallon pail
